LOCK
Tool Rest System

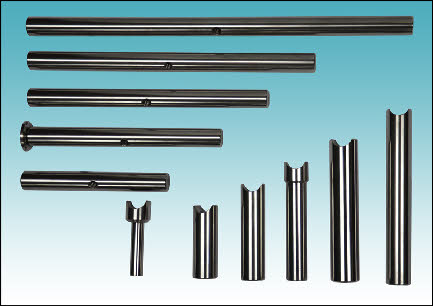

The tool rests are in hardened steel for durability.
The tool stems.
Showing the assembly of a straight tool rest & bowl turning rest on the
same stem.
same stem.
Part No.: Standard sizes available:
TR/7a: Box scraper platform assembly.
Includes Part for fitting to stem & platform
32mm w. x 125mm.
TR/7b: Box scraper platform 32mm w. x 125mm.
TR/7a: Box scraper platform assembly.
Includes Part for fitting to stem & platform
32mm w. x 125mm.
TR/7b: Box scraper platform 32mm w. x 125mm.
Part No.: Standard sizes available:
TR/1 : 150mm Long with threaded hole in centre.
TR/2a : 200mm Long with threaded hole in centre.
TR/2b : 200mm long with threaded hole in centre &
threaded hole at the end to take the included
safety washer.
TR/3 : 250mm Long with threaded hole in centre.
TR/4 : 300mm Long with threaded hole in centre.
TR/5 : 400mm Long with threaded hole in centre.
TR/6 : 180mm Long with threaded hole at one end. This
tool rest can be used for internal & external as
well as straight turning.
TR/7 : Box scraper platform assembly. Includes part for
fitting to stem & platform 32mm w. x 125mm.
TR/7b : Box scraper platform 32mm w. x 125mm.
TR/8/9/10/S: 55mm, 75mm & 90mm external radius tool
rest set.
TR/1 : 150mm Long with threaded hole in centre.
TR/2a : 200mm Long with threaded hole in centre.
TR/2b : 200mm long with threaded hole in centre &
threaded hole at the end to take the included
safety washer.
TR/3 : 250mm Long with threaded hole in centre.
TR/4 : 300mm Long with threaded hole in centre.
TR/5 : 400mm Long with threaded hole in centre.
TR/6 : 180mm Long with threaded hole at one end. This
tool rest can be used for internal & external as
well as straight turning.
TR/7 : Box scraper platform assembly. Includes part for
fitting to stem & platform 32mm w. x 125mm.
TR/7b : Box scraper platform 32mm w. x 125mm.
TR/8/9/10/S: 55mm, 75mm & 90mm external radius tool
rest set.
Part No.: Standard sizes available:
TS/1 : 25mm Diameter x 56mm long.
TS/2 : 25mm Diameter x 120mm long.
TS/3 : 1” (25.4mm) Dia. x 3” (76.2mm) long.
TS/4 : 1” (25.4mm) Dia. x 3.1/2” (88.9mm) long.
TS/5 : 1” (25.4mm) Dia. x 3.3/4” (95.25mm) long.
TS/6 : 1” (25.4mm) Dia. x 4.3/4” (120.65mm) long.
TS/7 : 1” (25.4mm) Dia. x 5.1/2” (139.7mm) long.
TS/8 : 1.1/8” (28.57mm) Dia. x 5.1/2” (139.7mm)
long.
TS/9 : 30mm Diameter x 5.1/2” (139.7mm) long.
TS/10 : 30mm Diameter x 6” (152.4mm) long.
TS/11 : 1/2” (12.7mm) Dia. x 3.1/2” (88.9mm) long.
TS/12 : 5/8” (15.87mm) Dia. x 3.1/2” (88.9mm) long.
TS/13 : 3/4” (19.05mm) Dia. x 4.1/2” (114.3mm) long.
TS/14 : 20mm Diameter x 114mm long.
TS/15 : 7/8” (22.22mm) Dia. x 4.3/4” (120.65mm)
long.
TS/1 : 25mm Diameter x 56mm long.
TS/2 : 25mm Diameter x 120mm long.
TS/3 : 1” (25.4mm) Dia. x 3” (76.2mm) long.
TS/4 : 1” (25.4mm) Dia. x 3.1/2” (88.9mm) long.
TS/5 : 1” (25.4mm) Dia. x 3.3/4” (95.25mm) long.
TS/6 : 1” (25.4mm) Dia. x 4.3/4” (120.65mm) long.
TS/7 : 1” (25.4mm) Dia. x 5.1/2” (139.7mm) long.
TS/8 : 1.1/8” (28.57mm) Dia. x 5.1/2” (139.7mm)
long.
TS/9 : 30mm Diameter x 5.1/2” (139.7mm) long.
TS/10 : 30mm Diameter x 6” (152.4mm) long.
TS/11 : 1/2” (12.7mm) Dia. x 3.1/2” (88.9mm) long.
TS/12 : 5/8” (15.87mm) Dia. x 3.1/2” (88.9mm) long.
TS/13 : 3/4” (19.05mm) Dia. x 4.1/2” (114.3mm) long.
TS/14 : 20mm Diameter x 114mm long.
TS/15 : 7/8” (22.22mm) Dia. x 4.3/4” (120.65mm)
long.
Website Design By: Mech Tech Industries Ltd.
TELEPHONE: 01756 795354
If you can’t find the size to suit your requirements we can make a stem to
order. **For the smaller stem sizes these are c.n.c. Machined from a
larger bar giving a chamfered shoulder. The lengths as above includes the
chamfered shoulder. The chamfered shoulder is 10.5mm from bottom of
socket to bottom of shoulder.
Example: A 3.1/2” (88.9mm) long stem less 10.5mm = 78.4mm usable stem.
order. **For the smaller stem sizes these are c.n.c. Machined from a
larger bar giving a chamfered shoulder. The lengths as above includes the
chamfered shoulder. The chamfered shoulder is 10.5mm from bottom of
socket to bottom of shoulder.
Example: A 3.1/2” (88.9mm) long stem less 10.5mm = 78.4mm usable stem.
Please Note: All our hardened tool rests are in 20mm round bar for durability & rigidity.
©
mech tech industries ltd. 2024
