SL360 /HD STAND:   Sliding Tile Display Stand

Innovators & manufacturers of tile displays

This tile display stand is unique to us in that the unit has no
upper track at the top so the maximum of light is projected -
onto the display panels.  This unit has seven sliding frames
allowing for two display areas per sliding frame and the other
unique feature with this unit is that it can be viewed from both
sides.  This unit is a compact unit and is ideal for the show-
room where space is at a premium. This SL360 /HD stand is a
heavy duty version of our SL360 stand it has ball bearings -
fitted  in the base rollers & the frame support bars are wider.
The SL360 /HD unit is also deeper & wider than the SL360 unit.

This unit will take 14 No. display panels 703mm wide x
                                                                       1437mm high.

This unit is supplied flat pack form with the mainframe fully assembled and set for ease of operation and the unit is -
supplied with 7 no. bolt on frames. The unit is constructed in box section with heavy duty carriages.  The carriages
are fitted with c.n.c. machined grooved rollers which are fitted with roller bearings for smooth operation.  The unit
is fitted with buffers at each end and is fitted as standard with 6 no. floor levelling devices.

H. 2000mm x  D. 1025mm x W. 1700mm

SL360

All prices exclude display boards.  Display boards can
be supplied at extra cost if required.

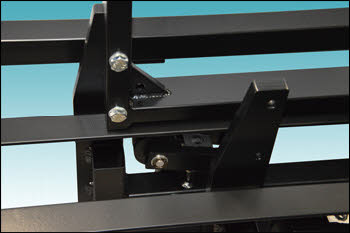

The pictures to the left & below shows the heavy
duty carriage. the guide wheels are spring loaded
& they are also adjusted for smooth operation on
The top track. The SL360 /HD is fitted with 2 no.
sheilded roller bearings per wheel for the bottom
track.

To the right the picture shows the bolt on
frame with one of the six fixing points that
the display panel fits to. Unit is supplied -
With  fittings for attaching display panels
Using special nickle plated display nuts.

©
